GenV RacePort EM Blow Off Valve Data SheetUpdated 2 days ago

The RacePort EM is a High Flowing Valve capable of supporting over 2500HP with built in solenoid for advanced control strategies and OE level vehicle integration, where electronic diverter valves are fitted. The RacePort EM (electro-mechanical) is a motorsport quality, high flowing diaphragm operated valve, with modern vehicle technology and motorsport smarts, in mind. The RacePort EM is a combination of decades of experience with the market leading RacePort 50mm Valve with our Multiple Award Winning and Patented EM (Electro-Mechanical) technology.

The RacePort architecture provide market leading flow and reliability with a diaphragm operated valve which has proven to be the most responsive and capable valve of it’s kind of the market. Add to this the Multiple Award Winning and patent EM (electro-mechanical) technology which provides seamless electronic integration, you have a motorsport proven solution with genuinely hi end and hi-tech credentials.

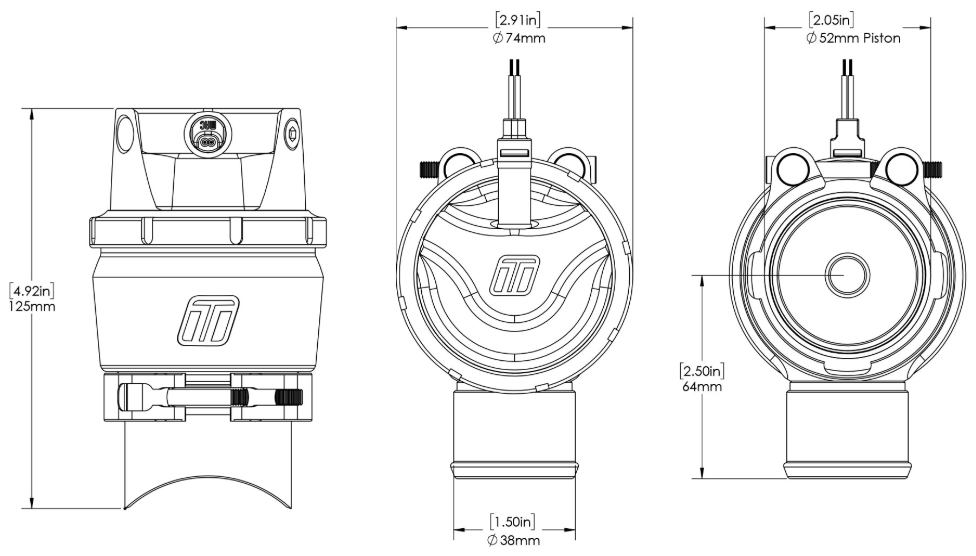

RacePort EM Dual Port Technical Drawing

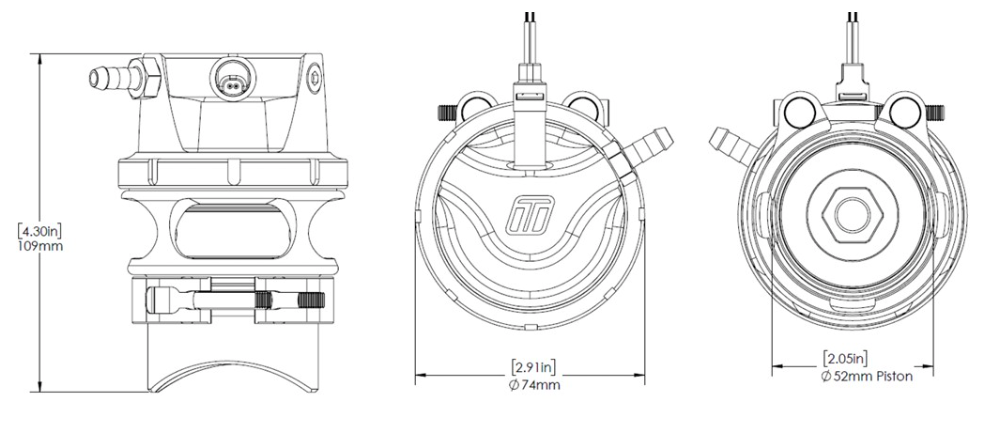

RacePort EM Plumb Back Technical Drawing

Features

• Award Winning and Patented EM (Electro-Mechanical) Technology
• Boost Balance Technology for high boost
• Billet 6000 series aluminium construction
• Milspec hard anodized valve guide and stem
• Hi-Temp Silicon Nomex Diaphragm
• Positive sealing valve seat

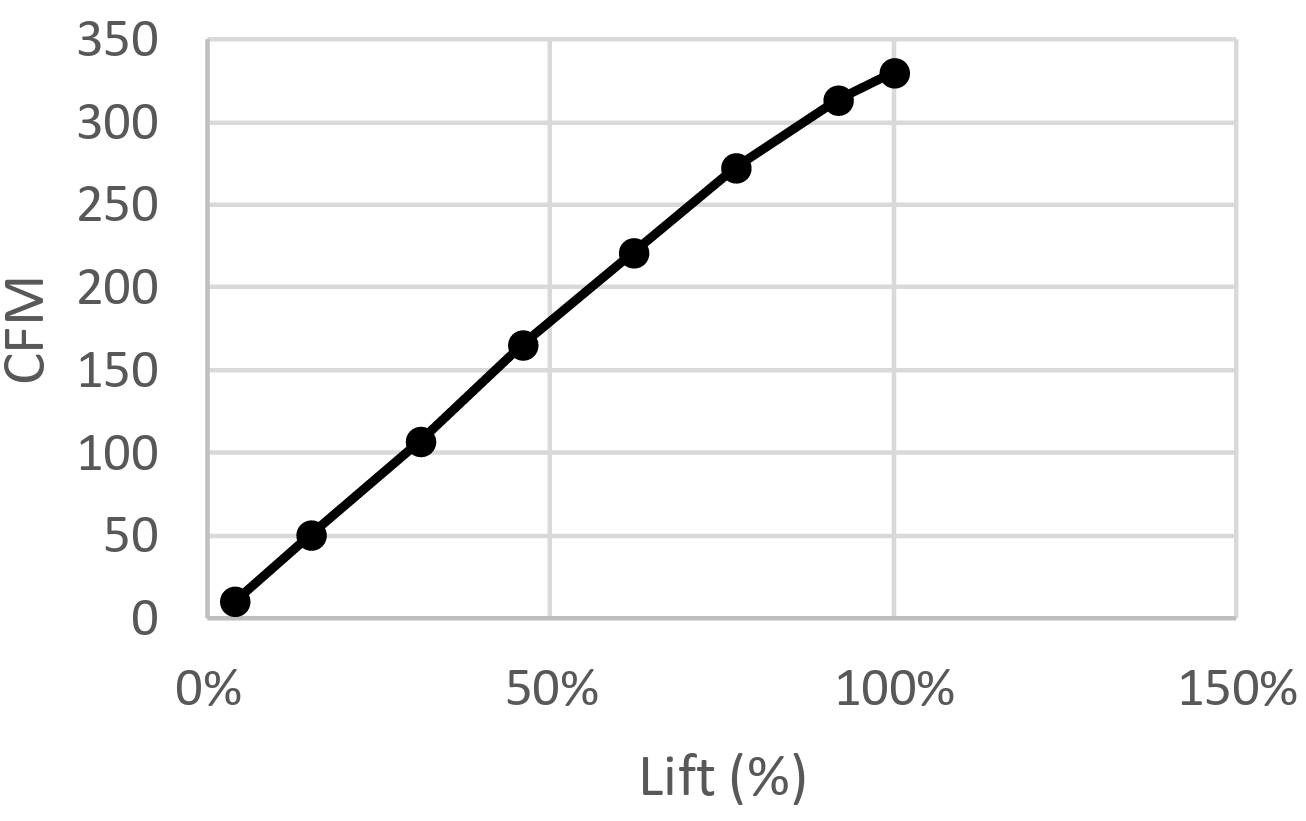

• 2.0″ inlet flows over 330 CFM

Included in the Box

• Blow Off Valve
• Inlet V-Band
• Aluminium weld flange
• Sticker
• Instruction card
