GenV RacePort Plumb back Blow Off Valve Data SheetUpdated 2 days ago
The GenV Plumb back RacePort valve is a heavy duty recirculating and plumb back diverter valve / dump valve that relies on the technology and advances that came before it, simply adding the ability and functionality to recirculate, rather than vent to atmosphere. We’ve kept the weight low, the flow high and feature menu full to ensure there is an option to suit your needs, all packaged in a sleek sleeper series RacePort Plumb back which will suit any low-profile engine bay requiring a diverter and bypass-valve, capable of huge flow and low compromise!
Features
- 38mm recirculation fitting
- Billet 6000 series aluminium construction
- Quick release aluminium V-band clamp
- 2.0″ / 50mm inlet
- Mil-spec hard anodized valve guide and stem
- Turbosmart unique locking collar
- Hi-temp mil-spec silcone nomex diaphragm
- Boost-balance technology
- Positive sealing valve seat
- Twin 1/8″ NPT reference ports
- Optional valve position sensor upgrade
Included in the Box
- Blow Off Valve
- Inlet V-Band
- Aluminium weld flange
- Sticker
- Instruction card
| Install Required | |
|---|---|
| Weld Flange | Suits 76.2mm/3” OD |
| Mechanical Data | |
|---|---|
| Valve diameter | 52mm |
| Mass | 488g |
| Safe working pressure max. | 220 psi / 1520 kPa / 15 bar |
| Actuator life | >500 k cycles @ 180ºC ambient |
| Actuator/Valve ratio | 1.2:1 |

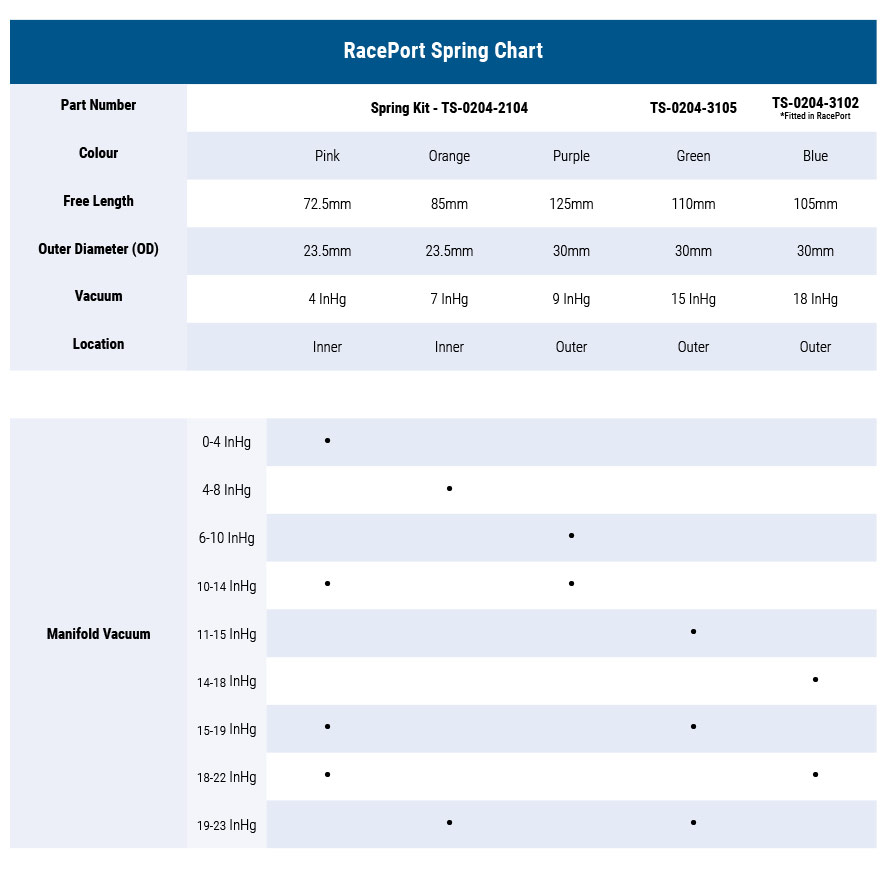

| Max. spring base pressure | 18 inHg (25inHg Combined) |
| Min. spring base pressure | 4 inHg |
| Port fittings type | Inlet: 2x 1/8” NPT |
| Thermal Data | |
|---|---|
| Min. Operating Temperature | -30ºC |
| Max. Operating Temperature | 200ºC |
| Material Data | |
|---|---|
| Beryllium (Be) | 0% |
| Main body | 6262 T6 anodised Al. |
| Valve | 6262 T6 |
| Inlet | 6262 T6 |
| Elastomers | Viton |
| Diaphragm | Proprietary MILSPEC |
| Springs | 17-7PH |
| Order Data | Refer to catalogue for accessories |
|---|---|
| TS-0204-1405 | GenV Plumb back Raceport Sleeper |
| TS-0204-1415 | GenV Plumb back Raceport Sleeper Suit Superchargers |
| TS-0204-1425 | GenV Plumb back Raceport Sleeper (Peer / Female Flange) |
| TS-0204-1435 | GenV Plumb back Raceport Sleeper Suit Superchargers (Peer / Female Flange) |
